Thermocouple Calibration: Turnaround Times, On-Site Services & How It Works
Tra-Cal Lab has provided ISO/IEC 17025 accredited, NIST-traceable thermocouple calibration for over 35 years — trusted by NASA, the U.S. military, and NIST. We service every major brand, from Omega probes and Fluke modules to National Instruments and MadgeTech acquisition hardware, with faster turnaround and lower cost than the OEM. We offer expedited services, on-site calibrationand Mid-Atlantic pickup and delivery to keep your operation running. Every certificate includes as-found/as-left data, so your measurements stand up to any audit.
Key Summary
Thermocouple calibration compares the thermocouple’s output against a NIST-traceable reference standard at multiple set points across its working range, using a controlled bath, dry-block, or fixed-point furnace, with the reference junction held at a known, documented temperature, with results documented on a calibration certificate. Standard turnaround is 3-5 business days with overnight rush available, and most thermocouples should be calibrated every 12 months by an ISO/IEC 17025 accredited lab.
Why Choose Tra-Cal?
ISO/IEC 17025 Accredited
Our lab is independently audited every year by ANAB to the industry's most rigorous quality standard, so every calibration is audit-proof.
Overnight Rush Available
When downtime isn't an option, expedited service gets your instrument calibrated and back in your hands overnight or within three days.
NIST-Traceable
Every measurement we make traces directly back to national standards, giving your results documented accuracy you can defend.
Trusted by NASA, the U.S. Military, and NIST
The organizations with the most demanding measurement requirements in the country choose Tra-Cal — yours can too.
Thermocouple Calibration Turnaround
| Service | Turnaround |
|---|---|
| On-site Calibration Service | Same-Day |
| Standard calibration with certificate | 3-5 business days |
| ISO/IEC 17025 accredited calibration | 4-6 business days |
| Expedited / rush | Overnight to 3 days |
Thermocouple Brands & Models We Calibrate
| Manufacturer | Popular Models We Calibrate |
|---|---|
| Omega | 5SRTC-GG-K-30-36, KTSS-18U-36, TJ36-CASS-18U-6 |

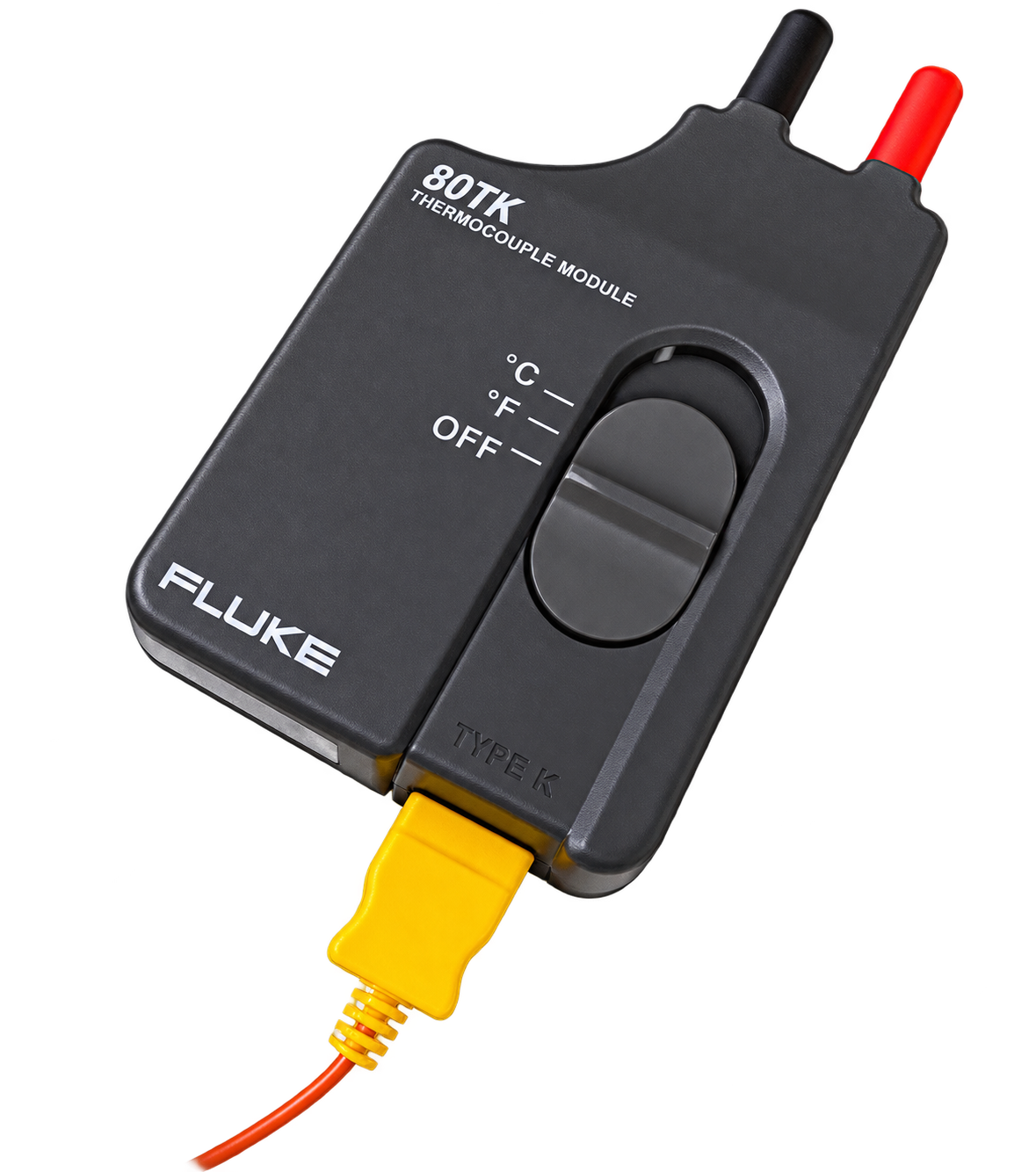

| Fluke | 80TK |
| National Instruments | NI USB-TC01 |
| MadgeTech | RF2000A |
Don’t see your model?
We support over 100 test equipment manufacturers — contact us and we’ll confirm coverage for your exact instrument.
Equipment & Standards Required
We maintain the following equipment and conditions required to calibrate a thermocouple accurately:
NIST-traceable standard platinum resistance thermometer or reference thermocouple with at least a 4:1 test accuracy ratio
Stirred liquid baths, dry-block calibrators, or tube furnaces covering the required span with documented uniformity
Ice-point reference cell or electronically controlled reference junction with documented stability
Precision thermometry bridge or nanovoltmeter with low thermal-EMF connections, plus the manufacturer’s calibration procedure
Stable environment: 23 °C ± 5 °C, controlled humidity, and NIST-traceable reference standards with a documentation system
How to Calibrate a Thermocouple: Step-by-Step
Step 1: Inspect the thermocouple and set up the reference junction. Examine the sheath, junction, and extension wire for damage, oxidation, or incorrect polarity, verify the wire type matches the connector, and establish a stable ice-point or electronic reference junction.
Step 2: Perform “as found” verification. Record the measured EMF or converted temperature at each set point before any action. As-found data proves whether the process temperatures controlled by this sensor were actually where the record says they were.
Step 3: Compare against the reference at each set point. Insert the thermocouple and reference standard to the same immersion depth, allow full stabilization at each set point, and record EMF against the reference temperature — stem conduction and inadequate immersion are the dominant error sources.
Step 4: Report deviations, or repair and reject as required. Thermocouples are generally not adjustable; deviations are reported as a correction table or curve. Sensors showing drift beyond the tolerance class, insulation breakdown, or shunting are documented and returned as limited-use or rejected.
Step 5: Perform “as left” verification and issue documentation. Re-run the set-point series after any repair and issue an ISO/IEC 17025 accredited certificate with as-found and as-left data, the correction table, measurement uncertainties, and NIST traceability.
Pro tip from our lab: Always request as-found/as-left data on your certificate. Without it, you can’t assess whether measurements taken before calibration were reliable — a common audit finding.
How Often Should You Calibrate a Thermocouple?
| Usage Profile | Recommended Interval | Notes |
|---|---|---|
| Daily industrial / field use | 6–12 months | Shorten after drift or overload events |
| General lab / bench use | 12 months | Industry-standard default |
| Regulated environments (ISO 9001, FDA, A2LA audits) | Per quality system, typically 12 months | Interval must be documented and justified |
ISO/IEC 17025 does not specify fixed calibration intervals. It requires that intervals be reviewed and adjusted as necessary to maintain confidence in the equipment. Recommended intervals are typically 6–12 months, adjusted based on documented risk assessment and historical stability data per the lab’s calibration program. A2LA and ANAB are accreditation bodies — distinct from quality-system frameworks such as ISO 9001 or FDA requirements.
Frequently Asked Thermocouple Questions
Q: How much does thermocouple calibration cost?
A: Thermocouple calibration cost depends on the temperature range and number of set points required, the thermocouple type and sheath construction, whether the probe is calibrated as a system with its readout, and whether accredited (17025) certification is needed, and whether accredited (17025) certification is required. Contact Tra-Cal for a quote.
Q: Can I calibrate a thermocouple myself?
A: You can perform verification checks against a known reference, but formal calibration requires traceable standards with a 4:1 accuracy ratio and documented uncertainty.
Q: What is the difference between calibration and adjustment?
A: Calibration is the documented comparison against a standard; adjustment is the correction made when readings fall outside tolerance.
Q: How long does calibration take?
A: Standard turnaround is typically 3-5 business days; Tra-Cal offers expedited service options.
