Optical Light Source Calibration: Turnaround Times, On-Site Services & How It Works
Tra-Cal Lab has provided ISO/IEC 17025 accredited, NIST-traceable optical light source calibration for over 35 years — trusted by NASA, the U.S. military, and NIST. We service every major brand, from EXFO and AFL to Photonix and FIS, with faster turnaround and lower cost than the OEM. We offer expedited services, on-site calibration and Mid-Atlantic pickup and delivery to keep your operation running. Every certificate includes as-found/as-left data, so your measurements stand up to any audit.
Key Summary
Optical Light Source calibration verifies output power stability and absolute level against a NIST-traceable optical power standard at each rated wavelength, along with centre wavelength and spectral width where the design allows, with results documented on a calibration certificate. Standard turnaround is 3-5 business days with overnight rush available, and most optical light sources should be calibrated every 12 months by an ISO/IEC 17025 accredited lab.
Why Choose Tra-Cal?
ISO/IEC 17025 Accredited
Our lab is independently audited every year by ANAB to the industry's most rigorous quality standard, so every calibration is audit-proof.
Overnight Rush Available
When downtime isn't an option, expedited service gets your instrument calibrated and back in your hands overnight or within three days.
NIST-Traceable
Every measurement we make traces directly back to national standards, giving your results documented accuracy you can defend.
Trusted by NASA, the U.S. Military, and NIST
The organizations with the most demanding measurement requirements in the country choose Tra-Cal — yours can too.
Optical Light Source Calibration Turnaround
| Service | Turnaround |
|---|---|
| On-site Calibration Service | Same-Day |
| Standard calibration with certificate | 3-5 business days |
| ISO/IEC 17025 accredited calibration | 4-6 business days |
| Expedited / rush | Overnight to 3 days |
Optical Light Source Brands & Models We Calibrate
| Manufacturer | Popular Models We Calibrate |
|---|---|

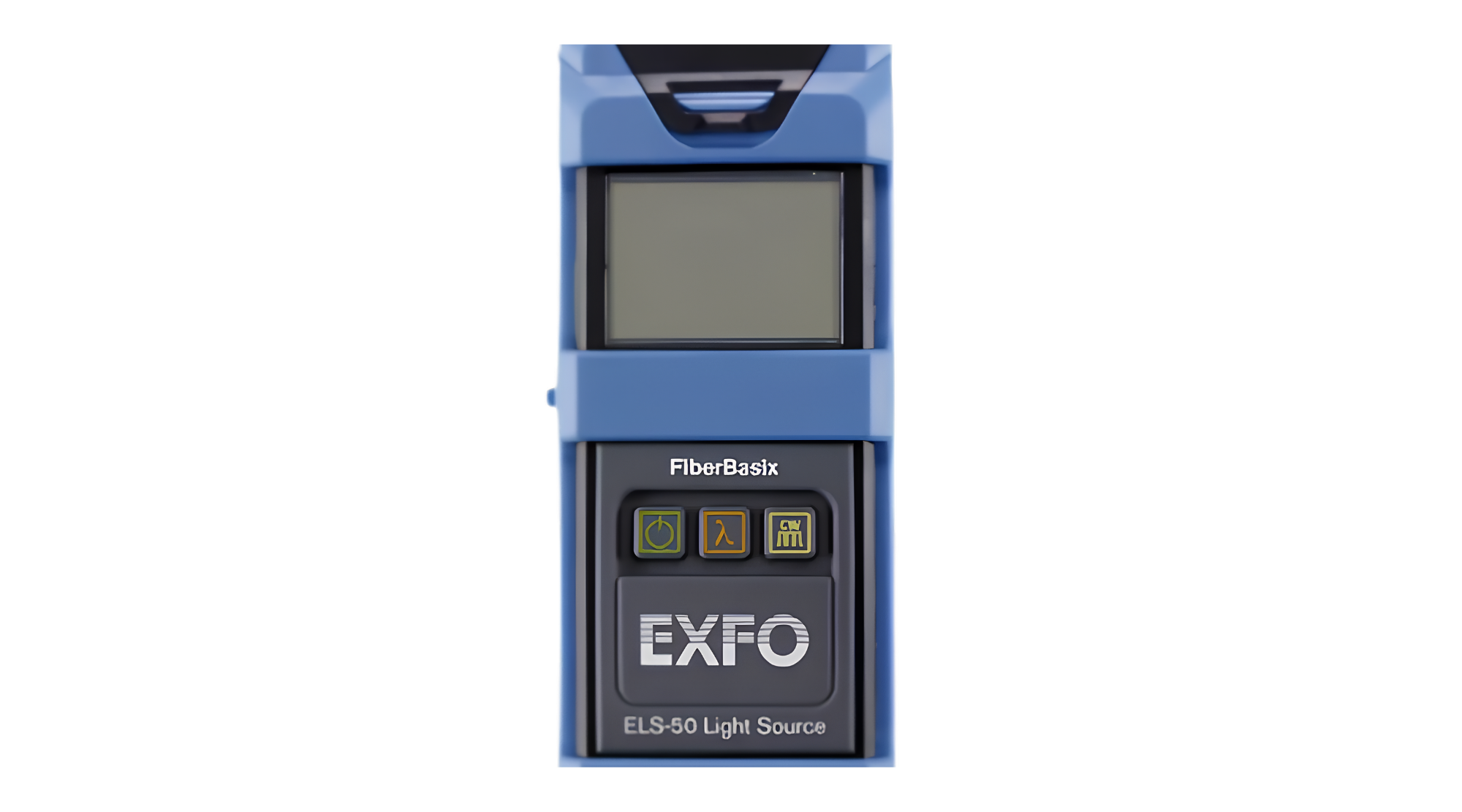

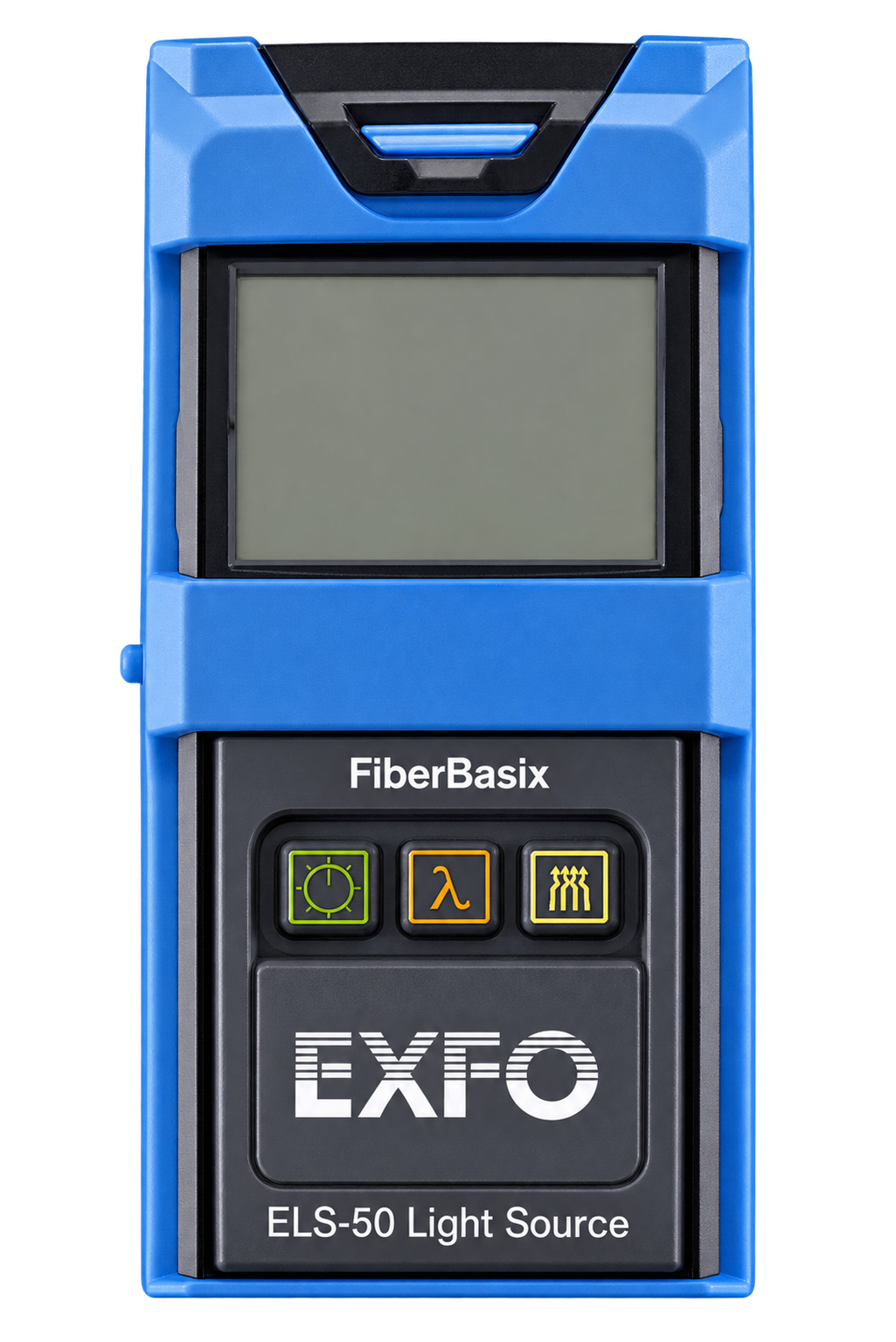

| EXFO | FOS-122A-74, ELS-50, IQ-2112D |
| FIS | 9055-0000, 9052-0000 |
| Photonix | PX-C202, PX-C202N |
| AFL | OLS1-2 |
Don’t see your model?
We support over 100 test equipment manufacturers — contact us and we’ll confirm coverage for your exact instrument.
Equipment & Standards Required
We maintain the following equipment and conditions required to calibrate an optical light source accurately:
NIST-traceable optical power reference standard with at least a 4:1 test accuracy ratio
Calibrated optical spectrum analyzer or wavelength meter for centre wavelength and spectral width
Reference connector adapters, inspection scope, and cleaning supplies for each interface type
Manufacturer’s calibration procedure and specifications
Stable environment: 23 °C ± 5 °C, controlled humidity, and NIST-traceable reference standards with a documentation system
How to Calibrate an Optical Light Source: Step-by-Step
Step 1: Inspect and clean every optical interface, then warm up the source. Scope and clean the output port and reference leads, and allow the source and standards to acclimate and stabilize for at least 30 minutes at 23 °C ± 5 °C.
Step 2: Perform “as found” verification. Record output power on every wavelength and mode before any adjustment. As-found data proves whether prior loss measurements were valid.
Step 3: Verify output power, stability, and wavelength. Compare output level against the traceable power standard at each wavelength, log short-term stability over the specified warm-up window, and confirm centre wavelength and spectral width against manufacturer tolerance limits.
Step 4: Adjust, re-verify, and document. Correct the output level where the design allows, repeat the verification, and issue a calibration certificate with as-found/as-left data and measurement uncertainty.
Pro tip from our lab: Always request as-found/as-left data on your certificate. Without it, you can’t assess whether measurements taken before calibration were reliable — a common audit finding.
How Often Should You Calibrate an Optical Light Source?
| Usage Profile | Recommended Interval | Notes |
|---|---|---|
| Daily industrial / field use | 6–12 months | Shorten after drift or overload events |
| General lab / bench use | 12 months | Industry-standard default |
| Regulated environments (ISO 9001, FDA, A2LA audits) | Per quality system, typically 12 months | Interval must be documented and justified |
ISO/IEC 17025 does not specify fixed calibration intervals. It requires that intervals be reviewed and adjusted as necessary to maintain confidence in the equipment. Recommended intervals are typically 6–12 months, adjusted based on documented risk assessment and historical stability data per the lab’s calibration program. A2LA and ANAB are accreditation bodies — distinct from quality-system frameworks such as ISO 9001 or FDA requirements.
Frequently Asked Optical Light Source Questions
Q: How much does optical light source calibration cost?
A: Optical Light Source calibration cost depends on the number of output wavelengths, the source type (LED, Fabry-Perot, or DFB laser), the connector interfaces involved, and whether a matched power meter is submitted, and whether accredited (17025) certification is required. Contact Tra-Cal for a quote.
Q: Can I calibrate an optical light source myself?
A: You can perform verification checks against a known reference, but formal calibration requires traceable standards with a 4:1 accuracy ratio and documented uncertainty.
Q: What is the difference between calibration and adjustment?
A: Calibration is the documented comparison against a standard; adjustment is the correction made when readings fall outside tolerance.
Q: How long does calibration take?
A: Standard turnaround is typically 3-5 business days; Tra-Cal offers expedited service options.
