LCR Meter Calibration: Turnaround Times, On-Site Services & How It Works
Tra-Cal Lab has provided ISO/IEC 17025 accredited, NIST-traceable LCR meter calibration for over 35 years — trusted by NASA, the U.S. military, and NIST. We service every major brand, from Keysight and B&K Precision to GW Instek and Tegam, with faster turnaround and lower cost than the OEM. We offer expedited services, on-site calibrationand Mid-Atlantic pickup and delivery to keep your operation running. Every certificate includes as-found/as-left data, so your measurements stand up to any audit.
Key Summary
LCR meter calibration verifies inductance, capacitance, and resistance readings — along with dissipation and quality factor — against traceable impedance standards at the instrument’s specified test frequencies, with results documented on a calibration certificate. Standard turnaround is 3-5 business days with overnight rush available, and most LCR meters should be calibrated every 12 months by an ISO/IEC 17025 accredited lab.
Why Choose Tra-Cal?
ISO/IEC 17025 Accredited
Our lab is independently audited every year by ANAB to the industry's most rigorous quality standard, so every calibration is audit-proof.
Overnight Rush Available
When downtime isn't an option, expedited service gets your instrument calibrated and back in your hands overnight or within three days.
NIST-Traceable
Every measurement we make traces directly back to national standards, giving your results documented accuracy you can defend.
Trusted by NASA, the U.S. Military, and NIST
The organizations with the most demanding measurement requirements in the country choose Tra-Cal — yours can too.
LCR Meter Calibration Turnaround
| Service | Turnaround |
|---|---|
| On-site Calibration Service | Same-Day |
| Standard calibration with certificate | 3-5 business days |
| ISO/IEC 17025 accredited calibration | 4-6 business days |
| Expedited / rush | Overnight to 3 days |
LCR Meter Brands & Models We Calibrate
| Manufacturer | Popular Models We Calibrate |
|---|---|
| Keysight (Agilent / HP) | 4284A, 4261A, 4263B, 4274A, 4285A, U1733C, E4990A |

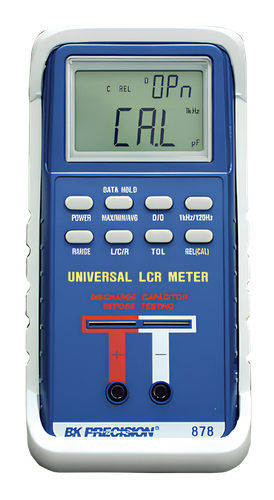

| B&K Precision | 878, 875A, 878A, 880 |
| GW Instek | LCR-819, LCR-816, LCR-817 |
| Tegam | 3525 |
| Stanford Research Systems | SR720 |
Don’t see your model?
We support over 100 test equipment manufacturers — contact us and we’ll confirm coverage for your exact instrument.
Equipment & Standards Required
We maintain the following equipment and conditions required to calibrate an LCR meter accurately:
Traceable impedance standards — standard resistors, capacitors, and inductors — with at least a 4:1 test accuracy ratio
Manufacturer’s calibration procedure and specifications
Stable environment: 23 °C ± 5 °C, controlled humidity
Low-loss test fixtures and leads with a documented open/short compensation routine
NIST-traceable reference standards and documentation system
How to Calibrate an LCR Meter: Step-by-Step
Step 1: Stabilize the environment and warm up the instrument. Allow the LCR meter and impedance standards to acclimate for at least 30 minutes at 23 °C ± 5 °C, then run the meter’s open and short compensation using the same fixture and leads that will be used for the test.
Step 2: Perform “as found” verification. Record readings on every parameter and range before any adjustment. As-found data proves whether prior measurements were valid.
Step 3: Test inductance, capacitance, resistance, D and Q across the specified test frequencies. Measure traceable impedance standards at multiple points across each range and test signal level, and compare against manufacturer tolerance limits.
Step 4: Adjust, re-verify, and document. Adjust any out-of-tolerance functions, repeat the verification, and issue a calibration certificate with as-found/as-left data and measurement uncertainty.
Pro tip from our lab: Always request as-found/as-left data on your certificate. Without it, you can’t assess whether measurements taken before calibration were reliable — a common audit finding.
How Often Should You Calibrate an LCR Meter?
| Usage Profile | Recommended Interval | Notes |
|---|---|---|
| Daily industrial / field use | 6–12 months | Shorten after drift or overload events |
| General lab / bench use | 12 months | Industry-standard default |
| Regulated environments (ISO 9001, FDA, A2LA audits) | Per quality system, typically 12 months | Interval must be documented and justified |
ISO/IEC 17025 does not specify fixed calibration intervals. It requires that intervals be reviewed and adjusted as necessary to maintain confidence in the equipment. Recommended intervals are typically 6–12 months, adjusted based on documented risk assessment and historical stability data per the lab’s calibration program. A2LA and ANAB are accreditation bodies — distinct from quality-system frameworks such as ISO 9001 or FDA requirements.
Frequently Asked LCR Meter Questions
Q: How much does LCR meter calibration cost?
A: LCR meter calibration cost depends on the test frequency range, the impedance and test-signal ranges covered, and whether accredited (17025) certification is required. Contact Tra-Cal for a quote.
Q: Can I calibrate an LCR meter myself?
A: You can perform verification checks against a known reference, but formal calibration requires traceable standards with a 4:1 accuracy ratio and documented uncertainty.
Q: What is the difference between calibration and adjustment?
A: Calibration is the documented comparison against a standard; adjustment is the correction made when readings fall outside tolerance.
Q: How long does calibration take?
A: Standard turnaround is typically 3-5 business days; Tra-Cal offers expedited service options.
