Ground Resistance Tester Calibration: Turnaround Times, On-Site Services & How It Works
Tra-Cal Lab has provided ISO/IEC 17025 accredited, NIST-traceable ground resistance tester calibration for over 35 years — trusted by NASA, the U.S. military, and NIST. We service every major brand, from Extech and AEMC to Greenlee and the wider earth-testing market, with faster turnaround and lower cost than the OEM. We offer expedited services, on-site calibration and Mid-Atlantic pickup and delivery to keep your operation running. Every certificate includes as-found/as-left data, so your measurements stand up to any audit.
Key Summary
Ground Resistance Tester calibration verifies indicated earth resistance against NIST-traceable precision resistance standards across each measuring range, and confirms the test-current output, auxiliary-electrode and stake-resistance warnings, and any bond, clamp-on, or four-wire modes the instrument provides, with results documented on a calibration certificate. Standard turnaround is 3-5 business days with overnight rush available, and most ground resistance testers should be calibrated every 12 months by an ISO/IEC 17025 accredited lab.
Why Choose Tra-Cal?
ISO/IEC 17025 Accredited
Our lab is independently audited every year by ANAB to the industry's most rigorous quality standard, so every calibration is audit-proof.
Overnight Rush Available
When downtime isn't an option, expedited service gets your instrument calibrated and back in your hands overnight or within three days.
NIST-Traceable
Every measurement we make traces directly back to national standards, giving your results documented accuracy you can defend.
Trusted by NASA, the U.S. Military, and NIST
The organizations with the most demanding measurement requirements in the country choose Tra-Cal — yours can too.
Ground Resistance Tester Calibration Turnaround
| Service | Turnaround |
|---|---|
| On-site Calibration Service | Same-Day |
| Standard calibration with certificate | 3-5 business days |
| ISO/IEC 17025 accredited calibration | 4-6 business days |
| Expedited / rush | Overnight to 3 days |
Ground Resistance Tester Brands & Models We Calibrate
| Manufacturer | Popular Models We Calibrate |
|---|---|

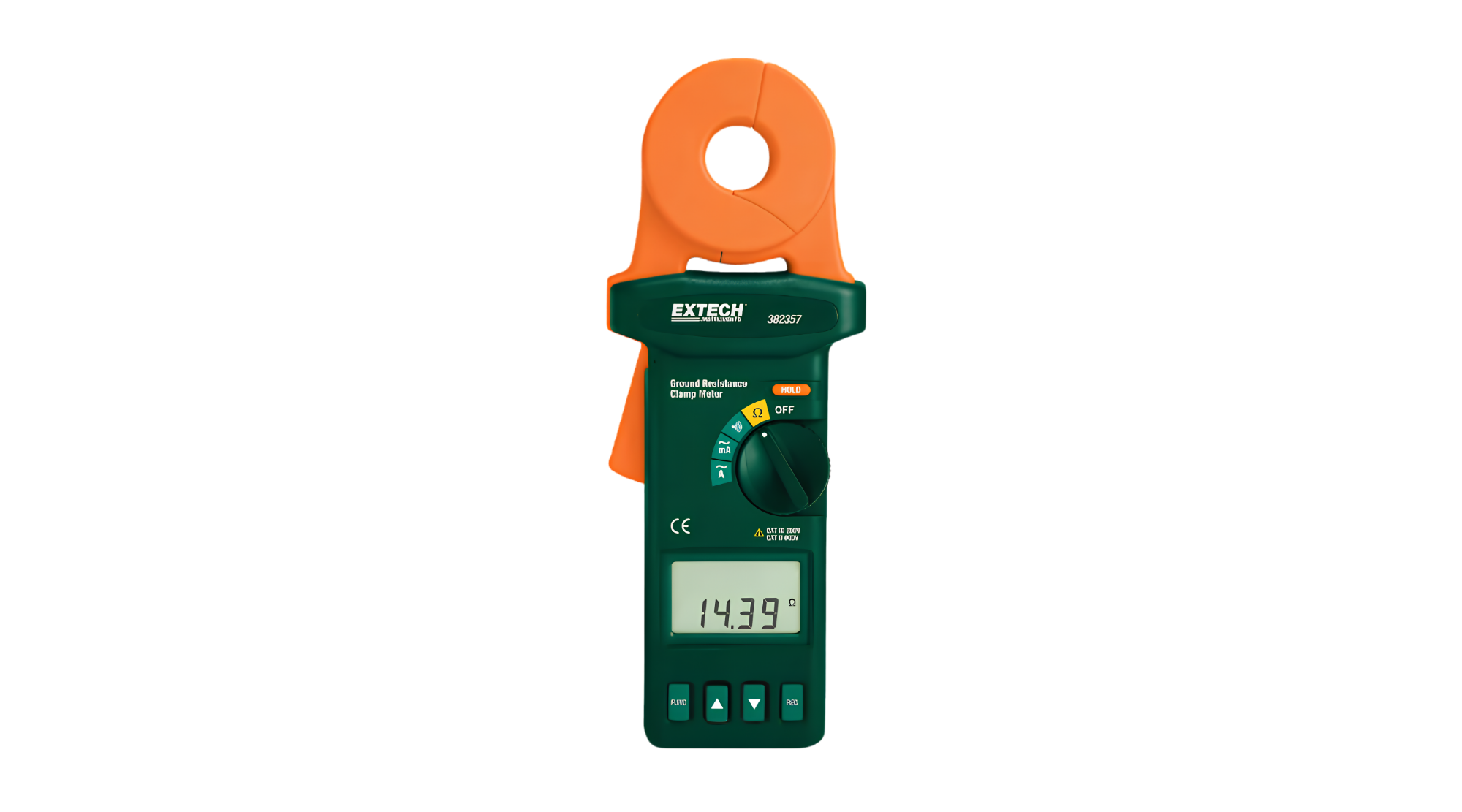

| Extech | 382357, 382252, 382152 |
| AEMC | 3711 |
| Greenlee | CMGRT-100A |
We support over 100 test equipment manufacturers — contact us and we’ll confirm coverage for your exact instrument.
Don’t see your model?
Equipment & Standards Required
We maintain the following equipment and conditions required to calibrate a ground resistance tester accurately:
NIST-traceable precision resistance standards spanning milliohms through kilohms with at least a 4:1 test accuracy ratio
Calibrated current shunt and reference meter for verifying test-current output and clamp-on current ranges
Low-resistance four-wire fixturing with characterised lead and contact resistance
Manufacturer’s calibration procedure and published range accuracy specifications
Stable environment: 23 °C ± 5 °C, controlled humidity, and NIST-traceable reference standards with a documentation system
How to Calibrate a Ground Resistance Tester: Step-by-Step
Step 1: Inspect the instrument, leads, and clamps, then stabilize. Check the test leads, stakes, clamp jaws, and terminals for corrosion or damage, verify the battery is healthy under load, and let the instrument and reference standards acclimate at 23 °C ± 5 °C.
Step 2: Perform “as found” verification. Record indicated resistance at each test point on every range and mode before any adjustment. As-found data proves whether previously recorded earth-electrode and bonding results met the site specification.
Step 3: Verify each range, mode, and the test current. Apply reference resistance values across every measuring range, confirm three-pole, four-pole, and clamp-on modes where fitted, measure the actual injected test current, and check that auxiliary-electrode and stake-resistance warnings trigger at the specified thresholds.
Step 4: Adjust, repair, or reject as required. Apply the manufacturer’s correction where the design allows, replace damaged leads, stakes, or clamp jaws, and service the instrument as needed. Testers outside specification after service are documented and returned as limited-use or rejected.
Step 5: Perform “as left” verification and issue documentation. Re-run the full range and mode set after any adjustment and issue an ISO/IEC 17025 accredited certificate with as-found and as-left data, measurement uncertainties, and NIST traceability.
Pro tip from our lab: Always request as-found/as-left data on your certificate. Without it, you can’t assess whether measurements taken before calibration were reliable — a common audit finding.
How Often Should You Calibrate a Ground Resistance Tester?
| Usage Profile | Recommended Interval | Notes |
|---|---|---|
| Daily industrial / field use | 6–12 months | Shorten after drift or overload events |
| General lab / bench use | 12 months | Industry-standard default |
| Regulated environments (ISO 9001, FDA, A2LA audits) | Per quality system, typically 12 months | Interval must be documented and justified |
ISO/IEC 17025 does not specify fixed calibration intervals. It requires that intervals be reviewed and adjusted as necessary to maintain confidence in the equipment. Recommended intervals are typically 6–12 months, adjusted based on documented risk assessment and historical stability data per the lab’s calibration program. A2LA and ANAB are accreditation bodies — distinct from quality-system frameworks such as ISO 9001 or FDA requirements.
Frequently Asked Ground Resistance Tester Questions
Q: How much does ground resistance tester calibration cost?
A: Ground Resistance Tester calibration cost depends on the number of measuring ranges and test modes (three-pole, four-pole, clamp-on, or bond testing), whether the current clamps and leads are submitted with the instrument, the number of test points required, and whether accredited (17025) certification is needed, and whether accredited (17025) certification is required. Contact Tra-Cal for a quote.
Q: Can I calibrate a ground resistance tester myself?
A: You can perform verification checks against a known reference, but formal calibration requires traceable standards with a 4:1 accuracy ratio and documented uncertainty.
Q: What is the difference between calibration and adjustment?
A: Calibration is the documented comparison against a standard; adjustment is the correction made when readings fall outside tolerance.
Q: How long does calibration take?
A: Standard turnaround is typically 3-5 business days; Tra-Cal offers expedited service options.
