Force Gauge Calibration: Turnaround Times, On-Site Services & How It Works
Tra-Cal Lab has provided ISO/IEC 17025 accredited, NIST-traceable force gauge calibration for over 35 years — trusted by NASA, the U.S. military, and NIST. We service every major brand, from Chatillon and Shimpo to Extech and Omega, with faster turnaround and lower cost than the OEM. We offer expedited services, on-site calibration and Mid-Atlantic pickup and delivery to keep your operation running. Every certificate includes as-found/as-left data, so your measurements stand up to any audit.
Key Summary
Force Gauge calibration verifies indicated force against a NIST-traceable reference load cell or deadweight standard in both tension and compression across the rated capacity, checking accuracy at multiple loads, repeatability, zero return, and peak-hold function, with results documented on a calibration certificate. Standard turnaround is 3-5 business days with overnight rush available, and most force gauges should be calibrated every 12 months by an ISO/IEC 17025 accredited lab.
Why Choose Tra-Cal?
ISO/IEC 17025 Accredited
Our lab is independently audited every year by ANAB to the industry's most rigorous quality standard, so every calibration is audit-proof.
Overnight Rush Available
When downtime isn't an option, expedited service gets your instrument calibrated and back in your hands overnight or within three days.
NIST-Traceable
Every measurement we make traces directly back to national standards, giving your results documented accuracy you can defend.
Trusted by NASA, the U.S. Military, and NIST
The organizations with the most demanding measurement requirements in the country choose Tra-Cal — yours can too.
Force Gauge Calibration Turnaround
| Service | Turnaround |
|---|---|
| On-site Calibration Service | Same-Day |
| Standard calibration with certificate | 3-5 business days |
| ISO/IEC 17025 accredited calibration | 4-6 business days |
| Expedited / rush | Overnight to 3 days |
Force Gauge Brands & Models We Calibrate
| Manufacturer | Popular Models We Calibrate |
|---|---|
| Chatillon | DFGS-50, LG-100, LG-20, IN-25, IN-30, IN-50, IN-100 |
| Shimpo | FGV-300H, FGE-100X, FGV-50XY |

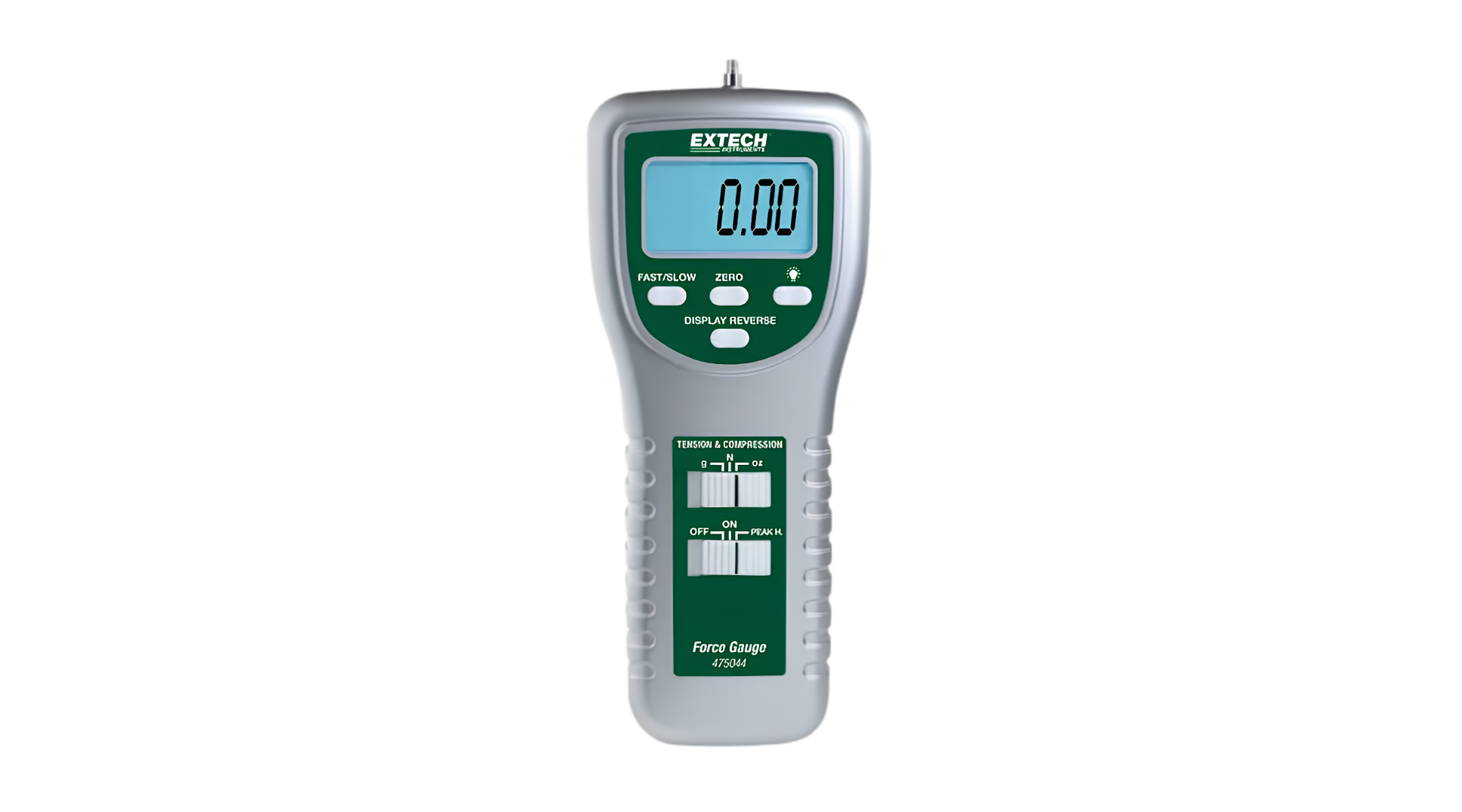

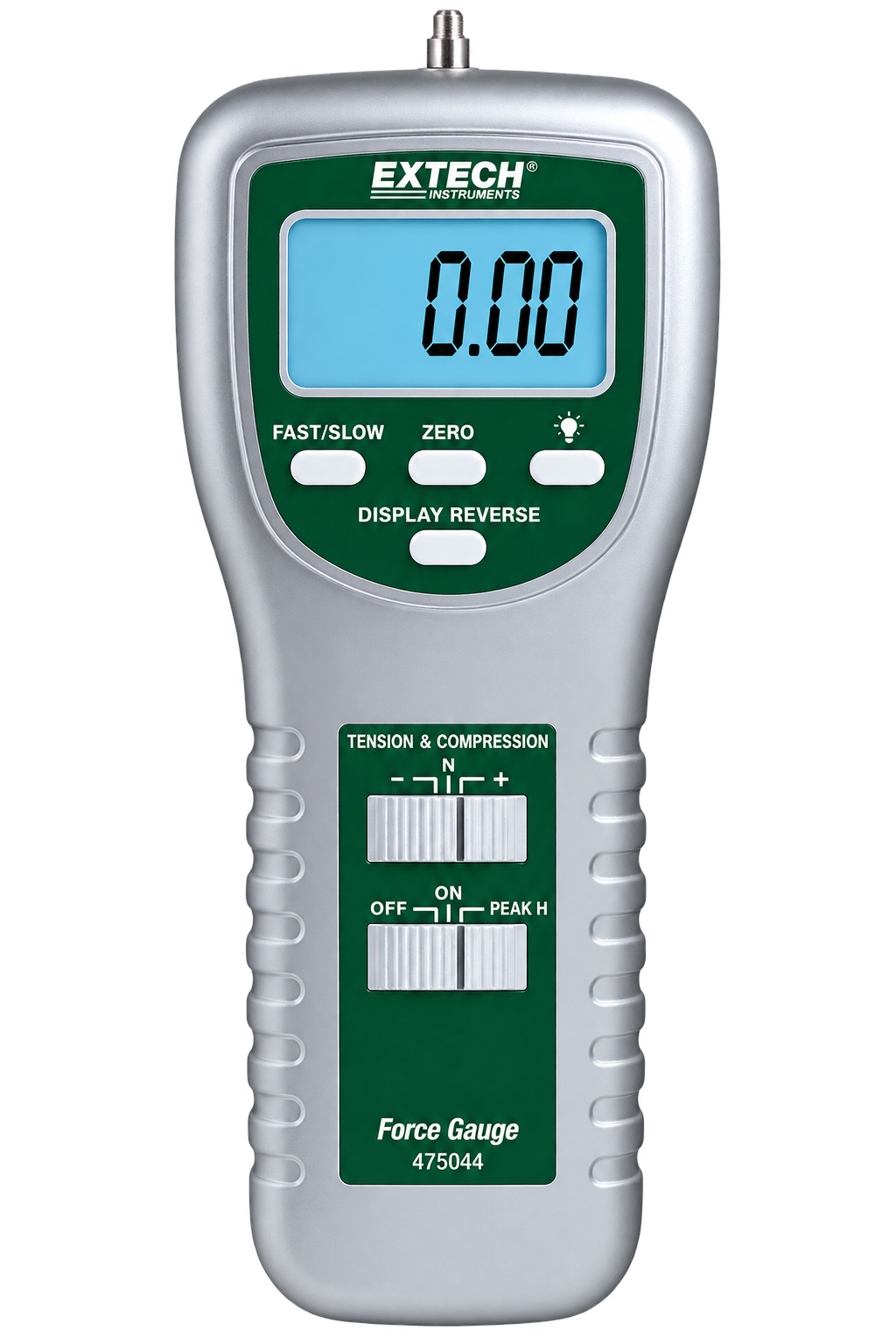

| Extech | 475044, 475044-SD |
| Omega | DFG81 |
Don’t see your model?
We support over 100 test equipment manufacturers — contact us and we’ll confirm coverage for your exact instrument.
Equipment & Standards Required
We maintain the following equipment and conditions required to calibrate a force gauge accurately:
NIST-traceable reference load cell or deadweight force standard with at least a 4:1 test accuracy ratio
Motorized or manual force test stand with controlled loading rate and rigid alignment
Calibrated adapters, hooks, and compression platens matched to the gauge’s thread and capacity
Manufacturer’s calibration procedure and published accuracy specifications
Stable environment: 23 °C ± 5 °C, controlled humidity, and NIST-traceable reference standards with a documentation system
How to Calibrate a Force Gauge: Step-by-Step
Step 1: Inspect the gauge and mount it in the test stand. Check the load cell shaft, threads, and adapters for damage or bending, confirm the gauge zeroes cleanly in the mounted orientation, and let the gauge and reference standard acclimate at 23 °C ± 5 °C.
Step 2: Perform “as found” verification. Record indicated force at each test load in both directions before any adjustment. As-found data proves whether previously accepted pull-test or crimp-pull results were valid.
Step 3: Verify accuracy, repeatability, and zero return. Apply reference loads at multiple points across the capacity in tension and compression, repeat a mid-range load to establish repeatability, confirm the peak-hold reading matches the live reading, and check return to zero after unloading.
Step 4: Adjust, repair, or reject as required. Perform span correction where the design allows, replace worn adapters or damaged load cells, and service the instrument as needed. Gauges outside specification after service are documented and returned as limited-use or rejected.
Step 5: Perform “as left” verification and issue documentation. Re-run the full load set after any adjustment and issue an ISO/IEC 17025 accredited certificate with as-found and as-left data, measurement uncertainties, and NIST traceability.
Pro tip from our lab: Always request as-found/as-left data on your certificate. Without it, you can’t assess whether measurements taken before calibration were reliable — a common audit finding.
How Often Should You Calibrate a Force Gauge?
| Usage Profile | Recommended Interval | Notes |
|---|---|---|
| Daily industrial / field use | 6–12 months | Shorten after drift or overload events |
| General lab / bench use | 12 months | Industry-standard default |
| Regulated environments (ISO 9001, FDA, A2LA audits) | Per quality system, typically 12 months | Interval must be documented and justified |
ISO/IEC 17025 does not specify fixed calibration intervals. It requires that intervals be reviewed and adjusted as necessary to maintain confidence in the equipment. Recommended intervals are typically 6–12 months, adjusted based on documented risk assessment and historical stability data per the lab’s calibration program. A2LA and ANAB are accreditation bodies — distinct from quality-system frameworks such as ISO 9001 or FDA requirements.
Frequently Asked Force Gauge Questions
Q: How much does force gauge calibration cost?
A: Force Gauge calibration cost depends on the rated capacity and resolution of the gauge, whether both tension and compression modes are required, the number of test points and load directions, and whether accredited (17025) certification is needed, and whether accredited (17025) certification is required. Contact Tra-Cal for a quote.
Q: Can I calibrate a force gauge myself?
A: You can perform verification checks against a known reference, but formal calibration requires traceable standards with a 4:1 accuracy ratio and documented uncertainty.
Q: What is the difference between calibration and adjustment?
A: Calibration is the documented comparison against a standard; adjustment is the correction made when readings fall outside tolerance.
Q: How long does calibration take?
A: Standard turnaround is typically 3-5 business days; Tra-Cal offers expedited service options.
